UAC 6-pack

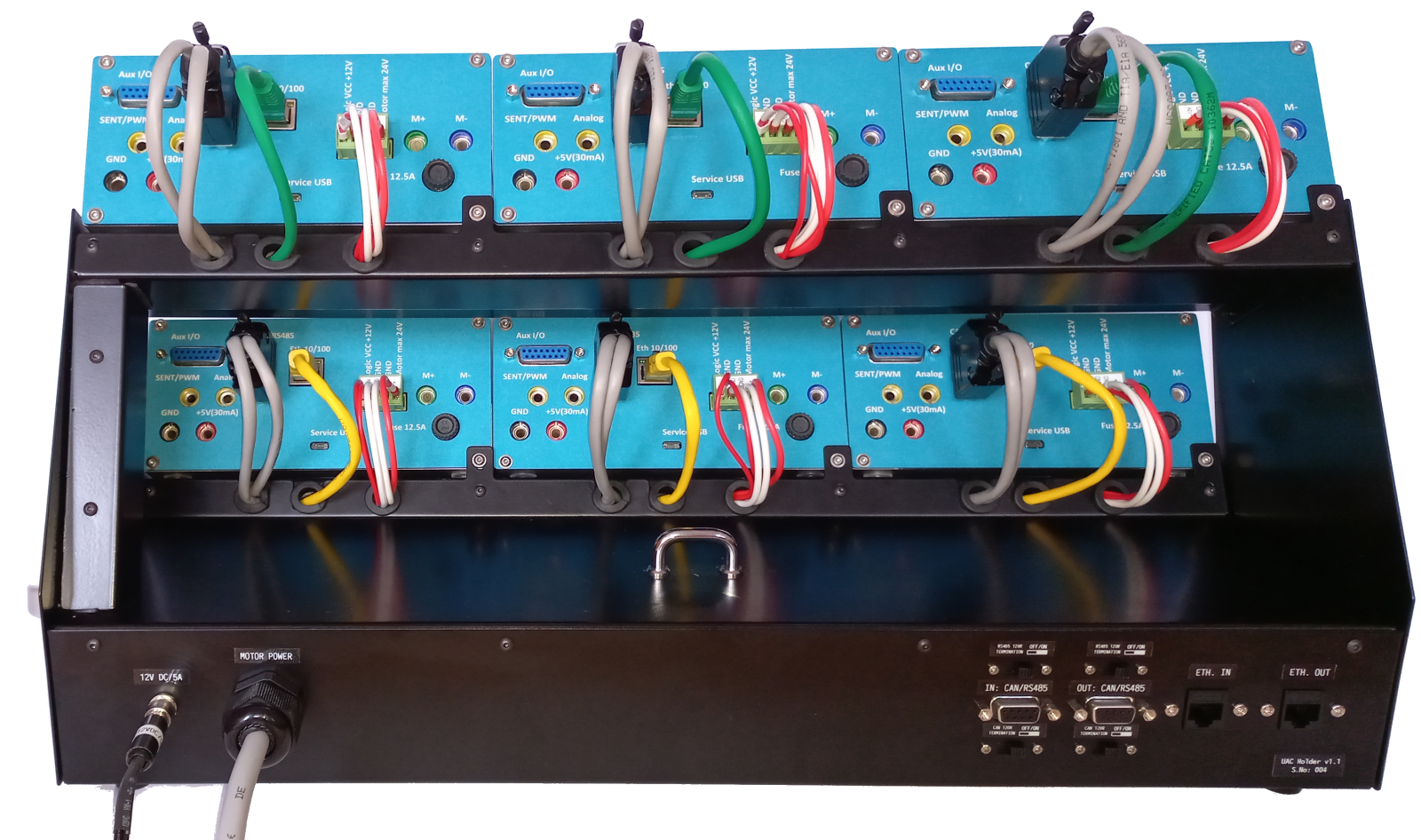

UAC holder is used to create 6-pack for multichannel operation. This stand can carry 6 standard UACs and provide all necessary cabeling with power and comunication connections.

One UAC can be set as master and all other UACs can be set as slaves, then all units will follow master movement profile simultenously.

Also each UAC can operate as single with independent actuation profile and UAC holder will only provide ethernet and power interconnection.

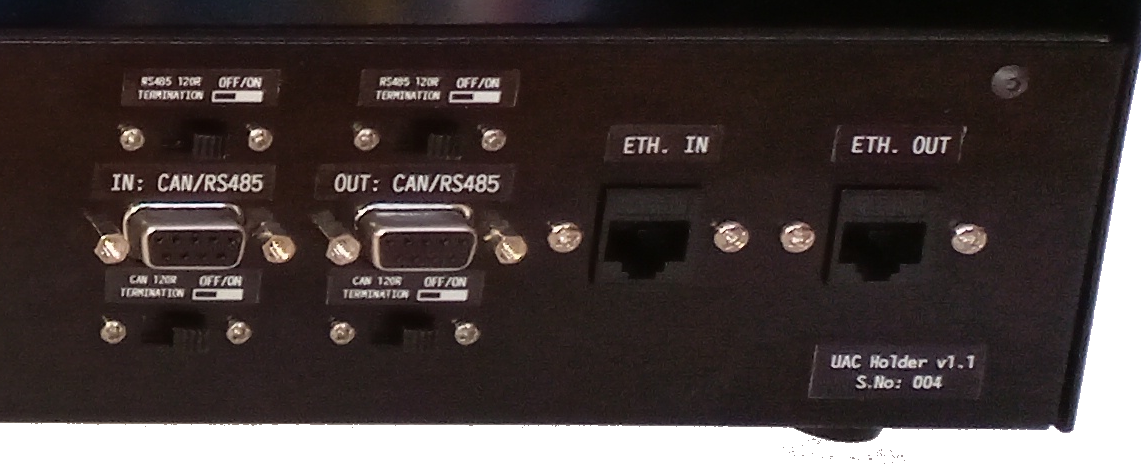

This 6-packs can be then chained together to create even more complex test cases. Each stand has input and output CAN, RS-485 and Ethernet interfaces. So is is needed to control 12/18/24 ... and more actuators controlled from one master - it is possible.

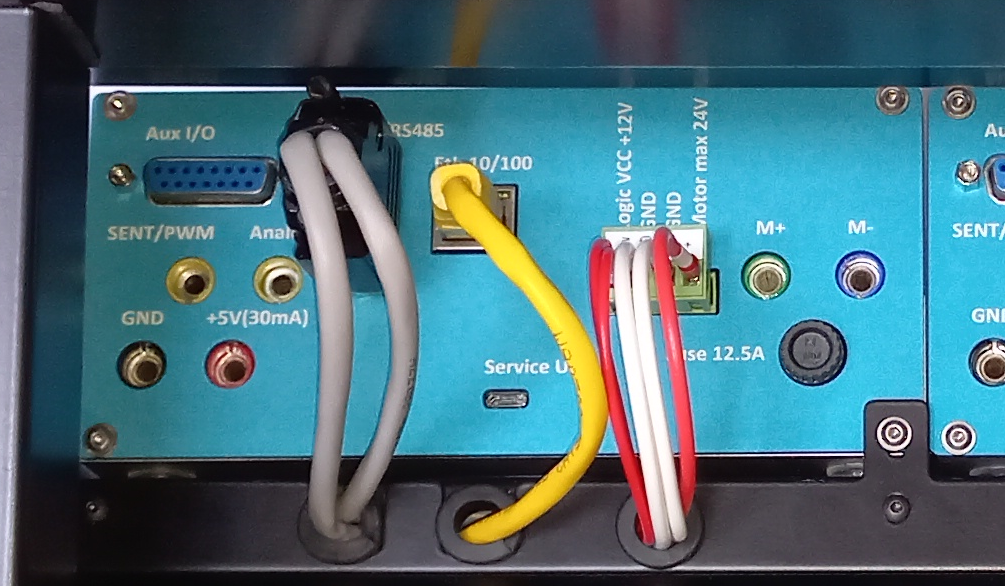

Each UAC has connected CAN bus , Ethernet and power. Power cable is then separated for motor power and UAC logic power. This allows to use independent power supply  for actuator motors.

Every UAC can be also simply replaced or removed and used independantly when needed.
